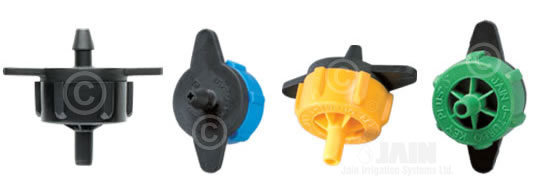

Take Apart, Turbulent Flow, Online Emitter Offers ease in maintenance and inspection.
Extended Outlet For connection of 4 mm ID extension tubing for right placement of water with multi-outlet connection.
Optional Anti-bug Cap. Prevents entry of ants/bugs inside the emitter.
Barbed Inlet with Narrow Cross Shaped Inlet Filter Barbed inlet suitable to connect directly on 4 mm extension tube or can be punched on polytube. Cross shaped inlet filters prevents entrance of most of the impurities.
Proven Performance Wide cross sectional area makes the dripper clog resistant.

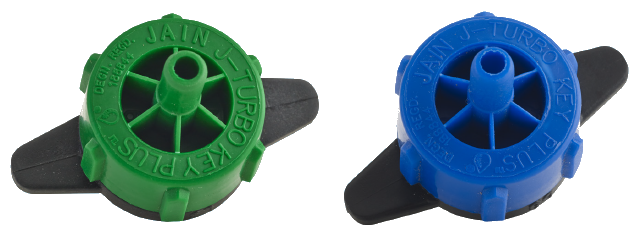

Color Coded Cap Color coded cap facilitates easy identification of emitter flow rate.

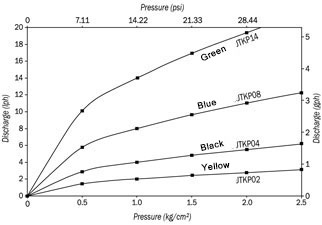

Nominal operating pressure 1 kg/cm². Can be used for other pressure ratings (lower/higher) after consulting company representative and with due care for filtration.
Always use `Turbo Key Spanner´ to open and close the dripper. Close the dripper properly.
Filtration recommendation 130 micron or less. Actual quality of filtration can be decided by quality of source water.
Please refer to our “Maintenance Manual″ for more details.
Applications
For orchards and vineyards, greenhouses, nurseries, landscape etc.
Recommended to use in problematic water condition where opening and cleaning of the emitter is needed.
