Standard Epoxy Coating for
Protection from Corrosion
Coated with more than 70 micron
thick light blue coloured epoxy
powder from both inside and
outside surface for protection
against corrosion and weather
effects
Unique Manifold Design
Unique design of manifold for
single tank unit facilitates flushing
with filtered water
High Quality Silica
Sand as Media
Filtration media is crushed silica
sand/quartz gravel of particle
size 1 mm to 2 mm (0.039 to
0.078 inch)
Innovative Candle Assembly
Innovative Candle assembly
provided to pass filtered water in
system
Various Connection
Options Available
Threaded connection, Flanged
connection or Easy Fix™
connection available
Various Options for
Backwash
Available in manual, semi
automatic or fully automatic
backwash options

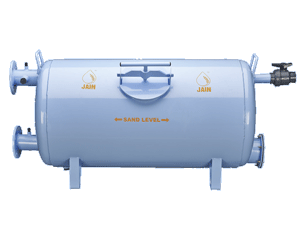

Manufactured from mild steel as per international
fabrication standards.
Designed for uniform distribution of incoming raw water
over the media bed which ensures very effective filtration
& backwash.
Effective filtration of 75 micron (200 mesh).
High filtration efficiency due to uniform grade of filtration
media (silica sand / quartz gravel) and specially designed
outlet candles.
Maximum pressure rating 10 kg/cm² (142 psi).
Clean-Master can also be supplied with stainless steel
body.
Optional multi tank modules for higher filtration capacities
available.
Applications
For filtration of water in micro irrigation systems to prevent clogging due to physical and biological impurities.
