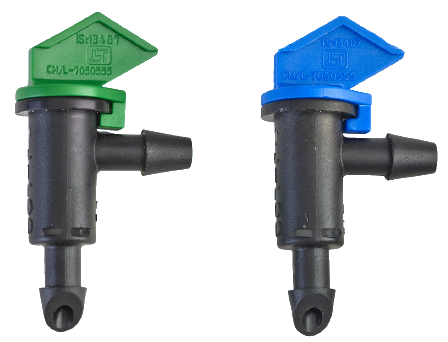

Simple Two Piece Take Apart Construction Two piece design facilitates ease of maintenance.
Facilitates Horizontal as well as Vertical Installation of Emitter Unique design allows to install emitter in any direction. Vertical installation used for nursery application near the saplings/pots. Horizontal installation facilitates easy retrieval of tubing and can be used for closely spaced crops.
No Environmental and Chemical Effects UV stabilized does not have any environmental effects. Resistant to chemicals used in agriculture.
Latching Insert Strong latching arrangement helps easy removal of flow path insert. Prevents snap-off under pressure fluctuations.
Barbed Outlet Suitable for 4 mm ID extension tubing to allow correct placement of water flow

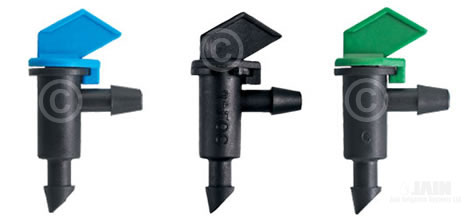

Color Coded Insert Color coded insert facilitates easy identification of emitter flow rate.

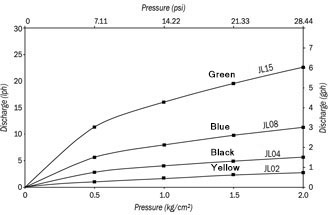

Nominal operating pressure 1 kg/cm². Can be used for other pressure rating after consulting company representative and with due care for filtration.
Filtration recommendation 130 micron or less. Actual quality of filtration can be decided by quality of source water.
Applications

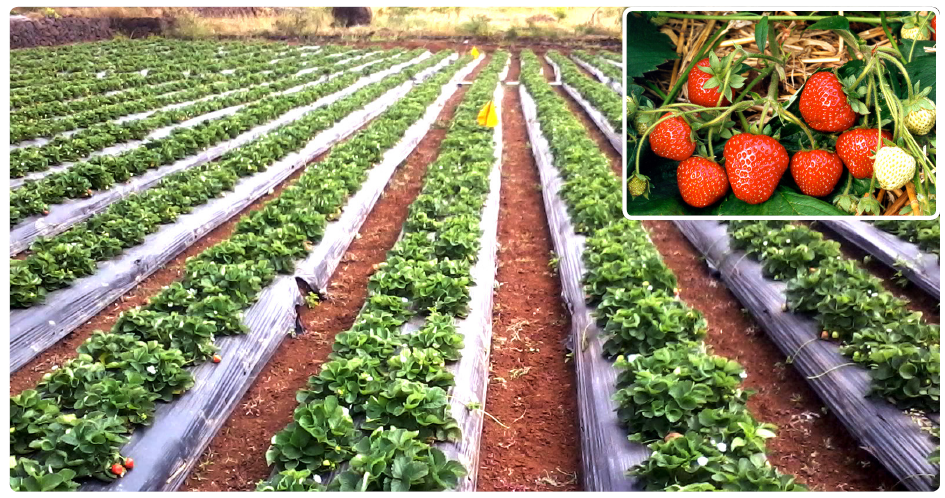

Recommended for fruit orchards requiring multiple drippers around the trunk of the tree, to cover widespread root zone.
