Standard Epoxy Coating for
protection from corrosion
Coated with more than 70 micron
thick light blue coloured epoxy
powder from both inside and
outside surface for protection
against corrosion and weather
effects
Innovative Turbulent Inlet
Turbulent inlet ensures thorough
mixing of chemicals and / or
fertilizers
Additional fine filter
To avoid entry of solid particles
in system, Special provision of
strainer on the outlet side
Separate Draining facility
available
Special Drain port given to flush
the tank

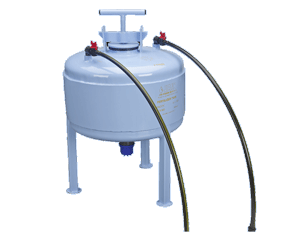

Mild steel construction.
Separate valves are provided on the inlet & outlet to
control the injection rate.
High pressure hose assembly inlet / outlet connection.
Wide 8" opening for easy pouring of stock solution.
Maximum working pressure 10 kg/cm² (142 psi).
Available in 30, 60, 90, 120 & 160 liter (8, 16, 24, 32 & 42
US gallon) capacity.
Applications
Fertilizer and chemical injection through drip and sprinkler irrigation systems.
