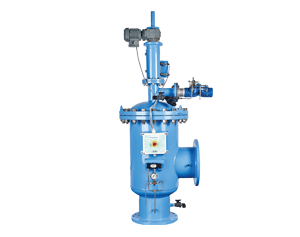

Automatic Flushing
Mechanism
Automatic flushing according to
pressure differential and/or time
with motorized mechanism
Self–Suction Cleaning
Mechanism
Cleaning of the filter is carried
out by the suction smart scanner
which rotates spirally across the
screen
Unique Smart Scan Element
Equipped with Smart–Scan
element, Unique filtering
element, to assure high
performance and effective
filtration
Standard Pure Polyester /
Epoxy coating for Protecting
from Corrosion
Coated with more than 70
micron thick deep blue colored
pure Polyester powder on outer
surface & Epoxy coating from
inner side for protection against
corrosion and weather effects
Mild steel Construction.
Available in standard mesh of 100 micron size. (other
mesh sizes available On demand).
Flow direction from inside of the element to outside (In to
Out).
Maximum operating pressure 10 kg/cm²(142 psi).
Smart Scan filter can also be supplied in stainless steel
body.
Large filtration area, reliable operating mechanism and
simple construction make the filter the ideal solution for
filtration of high – flow and poor quality water to very fine
filtration degrees.
No interruption of downstream flow during flushing
Minimal volume of reject water allows excellent operation
during flush mode.
Ideal solution for agriculture filtration systems.
Low pressure drop across the filter
Applications
Used for Water supply systems, Irrigation systems, Cooling Water, Wastewater Treatment, Industrial Pre–Filtration etc.
