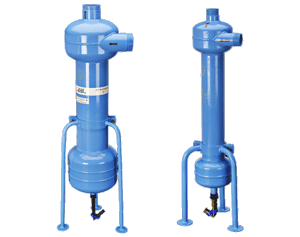

Patented Hydrodynamic Design Innovative hydrodynamic design to create maximum centrifugal action to separate particles heavier than water
Standard Pure Polyester / Epoxy Coating for Protecting from Corrosion Coated with more than 70 micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against corrosion and weather effects
Innovative Water Inlet Innovative water inlet provided to create centrifugal action
Equipped with Diffuser Plate Special diffuser plate is provided to settle dirt particle and push them in to chamber
Various Optional Connections Available Supplied with threaded, flanged & Easy Fix™ joint for inlet and outlet connection
Effective Draining Facility Provided 20mm ‘8’ shape end stop with tube provided to drain silt/ sand particles from collection chamber
No moving parts to wear out – This eliminates mechanical failures and troublesome replacement parts.
Highest trapping efficiency – 90% trapping efficiency for particle size above 75 micron & specific gravity more than 2.5.
No downtime requirements – All units are designed to operate continuously with no routine shutdowns for cleaning or maintenance.
Low pressure loss – Require no more than 0.3 – 0.8 Kg/ cm² loss for effective solids removal without troublesome pressure fluctuations.
Reduces load on secondary Media / Screen filter – Reduces the frequency of cleaning for Media / Screen filter when installed before them.
Fully Automatic Option – On demand Jain Sand Separator can also be supplied with fully automatic option.
Applications
Used in micro irrigation systems to remove sand and silt particles from irrigation water.
