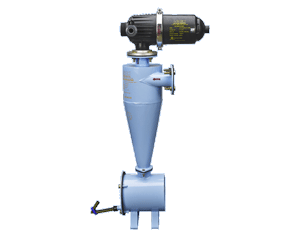

Innovative assembly of
Hydrocyclone Filter and
Screen Filter
Hydrodynamically designed
Hydrocyclone filter to create
maximum centrifugal action
to separate particles heavier
than water and screen filter for
secondary filtration
Standard Epoxy Coating for
Protection from Corrosion
Coated with more than 70 micron
thick light blue coloured epoxy
powder from both inside and
outside surface for protection
against corrosion and weather
effects
Various Connection
Options Available
Threaded connection, Flanged
connection or Easy Fix™
connection available
Separate Draining Facility
Available
Large volume of dirt collection
chamber with drain valve for
Hydrocyclone filter and separate
drain valve for Disc Filter
Special Rubber Cone
Special rubber cone is provided
at the bottom of the cone of
Hydrocyclone filter to prevent
wearing
Equipped with Pressure
Check Assembly
To check pressure from inlet
side and outlet side, additional
Pressure check assembly
provided
Mild steel construction.
Dirt can be easily flushed out through dirt collection
chamber.
Available in maximum operating pressure of 6 kg/cm²
(142 psi).
Can also be supplied in stainless steel as a special order.
Can be supplied in higher flow capacities in multiple
batteries option.
Applications
Used in micro irrigation systems to remove sand and silt particles from irrigation water.
