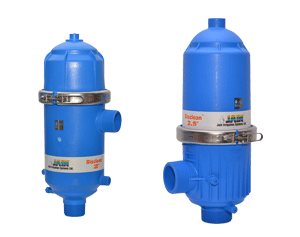

Jain Super Flow® Silver |
|
Features and Specifications
- Innovative Compact
Filter Design
To install filter in smaller area,
filter is compacted without
reducing performance
- Unique Smart Clean Element
Unique ‘Smart–Clean’ element,
assures high performance and
effective filtration. (Flow direction
Out to In)
- Easy for Maintenance
Strong and smooth opening,
drip–tight SS clamp closure.
- Various Connection Options
Available
Threaded connection, Flanged
connection or Easy Fix™
connection available
- Draining Facility Available
Additional Drain Valve provided
to remove dirt from filter
- Equipped with Pressure
Check Assembly
To check pressure from inlet
side and outlet side, additional
Pressure check assembly
provided
- Manufactured from special plastic alloy material which
gives very high stiffness, toughness, heat and impact
resistance.
- Excellent chemical and weather resistance.
- Ribbed body construction, designed to withstand water
hammer and surges in the pipe line.
- Maximum operating pressure 6 kg/cm² (85.2 psi).
- Available in standard filtration of 100 micron. (Other mesh
sizes are available On demand)
- Available in 2" (20 & 25 m³/hr), 2 ½" (30 & 40 m³/hr) and
3" (50 m³/hr) inlet & outlet connection sizes.
- On demand, Jain Super Flow Plus can also be supplied
with automatic flushing arrangement.
Applications
- Used for water filtration of drip & landscape irrigation system.
|
|
|
