Innovative Filter Design
Compact design, economical
since no extra fittings required
for the connection of Jain Sand
Separator to Disc filter
Standard Pure Polyester /
Epoxy coating for Protecting
from Corrosion
Coated with more than 70 micron
thick deep blue colored pure
Polyester powder on outer surface
& Epoxy coating from inner side
for protection against corrosion
and weather effects
Various connection
options available
Threaded connection, Flanged
connection or Easy Fix™
connection available
Additional Pressure
Check Assembly
To check pressure from inlet side
& outlet side additional pressure
check assembly provided.
Draining facility available
Drain valve available for draining
dirt particles from filter
Equipped with Patended Jain
Sand Separator
Innovative hydrodynamic
patented design used in Spin
Clean Filter.
Mild steel construction for Sand separator and special
plastic alloy material for Disc filter

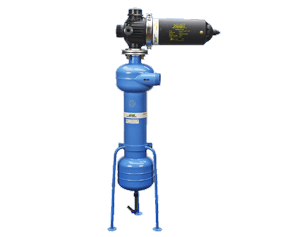

Specially equipped Jain Sand Separator with disc filter for
efficient filtration. It also helps to prolong cleaning of disc
element.
Removes fine sand and silt particles of size higher than
75 microns.
Maximum operating pressure 10 kg/cm² (142 psi).
Can also be supplied in stainless steel as a special order.
Can be supplied in multiple batteries option.
Can also be supplied with fully automatic option.
Applications
Used in micro irrigation systems to remove sand and silt particles from irrigation water.
