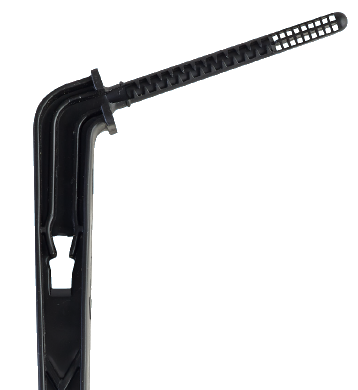

Stake with Inbuilt Emitter Turbulent flow path with stake for correct and stable positioning of the dripper.
Precise injection moulded flow path Provides uniform distribution of water when used with the dripper and multioutlet connectors in pot/bag irrigation.
Special Provision of Inspection Window Facilitates visual observation of falling droplets.
Easy to Install Angular Shaped Stake Prevents tube snap-off and reduces stresses on the tubing.
Uniform Dispersion of Water Drop split knife helps for water dispersion to cover maximum root zone area.
Multipurpose Utility Can be used as an independent dripper or with online emitter to divide the flow uniformly.
Minimum recommended working pressure: 1 kg/cm2.
Maximum recommended flow per outlet: 2.0 l/h.
Minimum recommended flow per outlet: - Flat surface and uniform tube length - 0.5 l/h - On a slope or uneven elevation - 1.0 l/h
When used with dripper and multi-outlet connector, ensure that level difference between the pots/bags shall not be more than 5cm.
Application

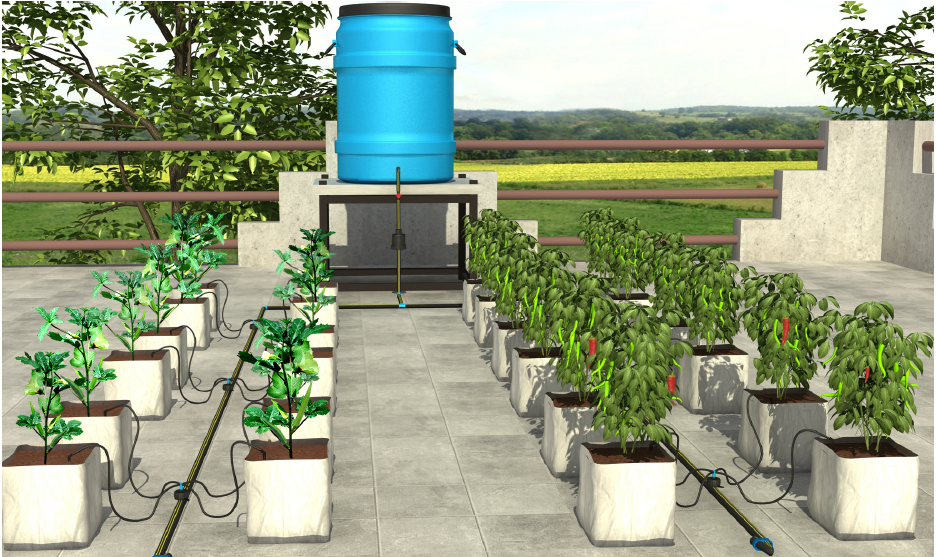

Suitable for pot irrigation, nurseries, glass/green houses, vegetables, home gardens.
