Features and Specifications

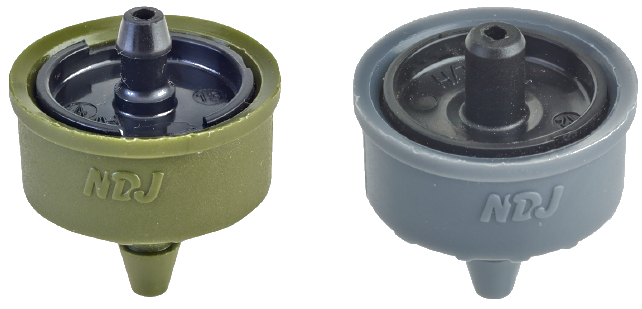

- Factory Sealed, Pressure Compensating Emitter Available with two options, - Basic Pressure Compensating,PC, (Green housing), - Pressure Compensating Non- Leakage, PCNL (Grey housing).
- Dynamic Self Cleaning Mechanism Dynamic movement of diaphragm retracts dynamically to throw away particles which are blocking the emitter.
- Barbed Inlet with Narrow Inlet Filter Barbed inlet suitable to connect directly on 4mm extension tube or can be installed on Polytube. Precision inlet filters prevents entrance of most of the impurities.

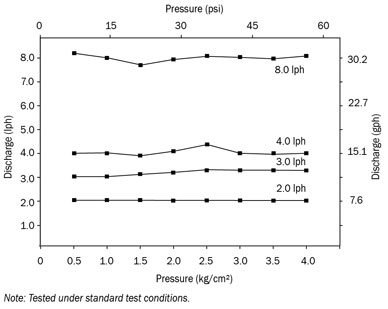

- Wide Pressure Compensating Range Pressure regulation range 0.5 - 4 kg/cm2 pressure (7.11 to 56 .88psi)
- Clog Resistant, Wide Labyrinth Strong turbulent flow in the labyrinth helps for continual flushing and cleaning.
- Precision Pressure Compensation High quality injection moulded liquid silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity.
- Extended Outlet Available in two options, - Barbed outlet - For connection of 3 mm ID extension tubing for right placement of water. - Tapered outlet - For connection of multi outlet connectors or anti-bug cap.
- Optional Anti-bug Cap Prevents entry of ants/bugs inside the emitter.
Applications
- For orchards, vineyards, greenhouses, nurseries and landscape.
- For pulse irrigation and irrigation in soilless conditions
- Prevents surplus drainage in low places (PCNL model)
- For areas with harsh topographical conditions.
- Subsurface installation protects dripper from animal damage
- For irrigation of pot-plants with single, two, four or multiple
outlets.
|
