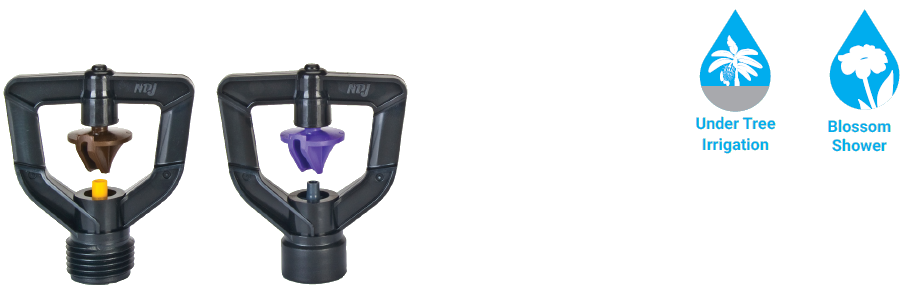

Low Angle Options Available Optimum water distribution with 9°, 15° and 24° trajectories for a wide range of applications
Silicon Motion Controller Sprinkler with silicone motion controller improves performance
Detachable Nozzle & Swivel Offers ease in maintenance & inspection
Unique Swivel Design Unique swivel for protection against snails
Specially Designed Side Ribs Smooth streamlined side ribs to secure the swivel and give minimum obstructions to water jet
Threaded Inlet Connection 1/2” or 3/8” male threaded and female Acme thread connection available
Discharges : 60 - 490 lph.
Diameter : 9 m to 17 m.
Recommended Pressure : 1.5 kg/cm² to 3.5 kg/cm².
Inlet Connection : 1/2” male threaded, 3/8” male threaded & Female Acme threaded
Nominal operating pressure is 1.5 kg/cm². Can be used for other pressure ratings (lower / higher) after consulting company representative and due care for spacing and application rate.

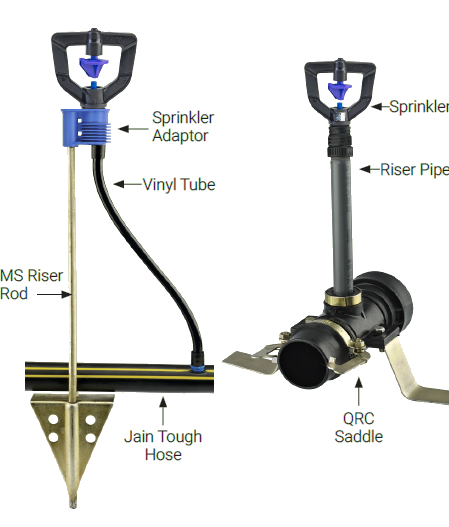

Easy to install with different mounting options, for details please refer to “Polyfittings & Accessories” section.
