We have perfected three joints according to the requirement of sizes. These joints are designed to withstand the tensile pull that will be acting on the joint when the pipeline is under pressure. The joint sealing is achieved by a specially designed rubber seal, which not only allows easy and smooth connection, but also makes it watertight as the pipe is brought up to pressure. The unique feature of the joint is that it can take 3 to 5 degrees deflection without any leak.
For sizes 50, 63 & 75 mm Quick-Connect® Joints are made of plastic. These joints are moulded from selected high impact engineering plastic that provides a secure grip on the pipe to give high performance coupled with light weight. These joints are available in maximum working pressure of 4 kg/cm² (57 psi).

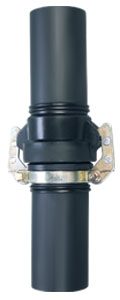

For sizes 63, 75, 90 & 110 mm, the clamps are Zinc plated metal. These metal joints are Zinc plated to resist corrosion. The clamping is achieved by hooking two points that are diametrically opposite. These joints withstand maximum working pressure of 6 kg/cm² (85 psi).

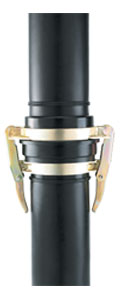

For sizes 110, 125, 140 & 160, the joints have heavy-duty Zinc plated levers. The levers hook to the clamp on the socket and allow for a high-pressure joint. The joint does not require anchoring during operation. These joints withstand working pressure upto 8 kg/cm² (114 psi).
Quick-Connect® Joints available in single metal clamp type design. These clamps are available in 75 mm size. These clamps are zinc plated to resist corrosion. These joints are available in maximum working pressure of 6 kg/cm² (85 psi).
Similar to plastic clamp type design, Quick-Connect® Pipes are available in double metal clamp type design. It is available in sizes of 50 and 75mm. These clamps are zinc plated to resist corrosion. These joints are available in maximum working pressure of 6 kg/cm² (85 psi)
