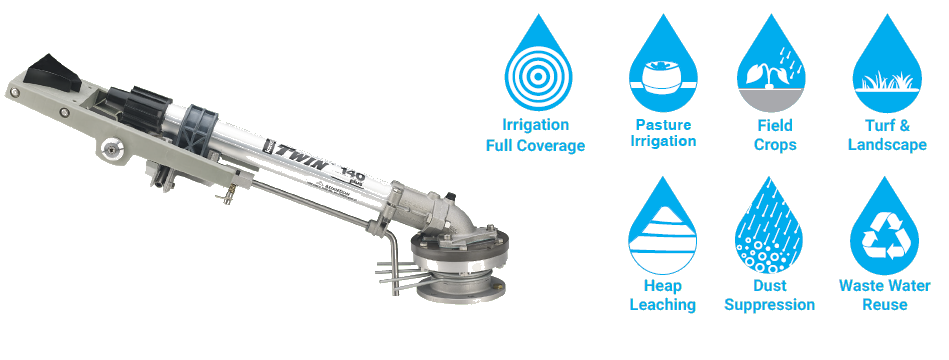

| Twin 140 Plus |
 |
Features and Specifications
- Hydraulically Designed Barrel and Taper Bore Nozzle Excellent hydraulic design, large barrel cross section and full size taper bore nozzle allows for maximum possible throw and performance.
- Easy Stream Break-up Adjustment Three stream break-up frequencies can be selected manually, without tools, in order to adjust rotation speed and to optimize the water distribution.
- Intermittent Dynamic Jet Breaker Intermittent dynamic jet breaker option increases the stream diffusion which allows a more delicate irrigation for sensitive crop and provides flexibility in operation at lower pressure.
- Optional Variable Trajectory Angle Model Optional variable trajectory angle model available which allows to change trajectory angle from 10º to 28º thus provides more uniformity even in windy conditions.
- Patented Self-Compensating Break System Unique patented selfcompensating break system keeps overall performance constant over time.
- Patented Drive System Patented drive system with excellent stream diffusion allows for smooth & steady operation.
- Discharge : 231.6 to 1524.6 lpm
- Wetted Radius : 27.9 to 63.1 m
- Operating Pressure : 2 to 7 Kg/cm²
- Inlet Connection : 2” female Threaded
- Usability : Raingun Assembly
Applications
- Recommended for field crops like Sugarcane, Pulses, Oil Seeds, Cereals, Tea, Coffee & Vegetables etc.
- Easy to use with portable irrigation system.
- Useful for large turfs, lawns and playground.
|
|
|
