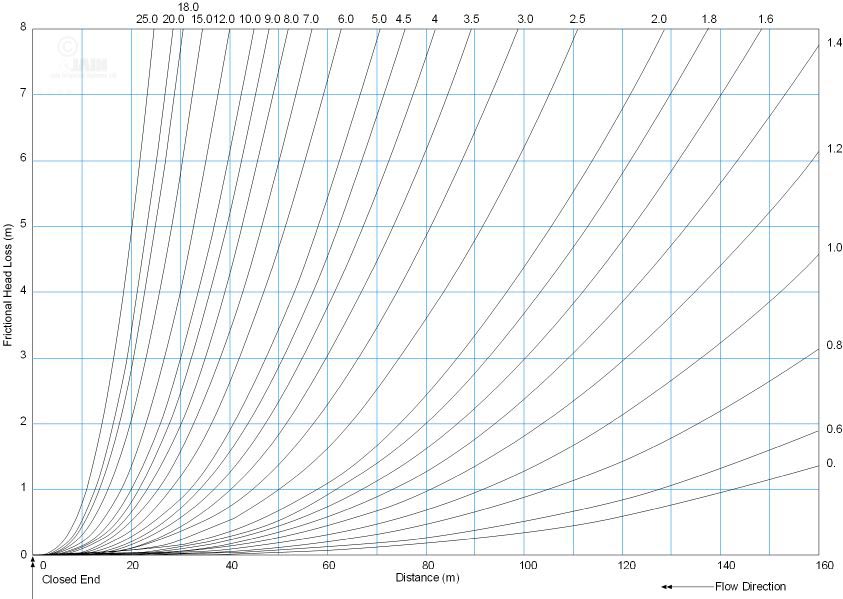

Note:• Curves are labelled with specific discharge rate (SDR) in lph/mtr.
• The friction loss has been calculated on the basis of the mean ID with dimensions and tolerances for pressure class-2 & for 0% ground slope.
• Based on the Hazen Williams flow equation.
