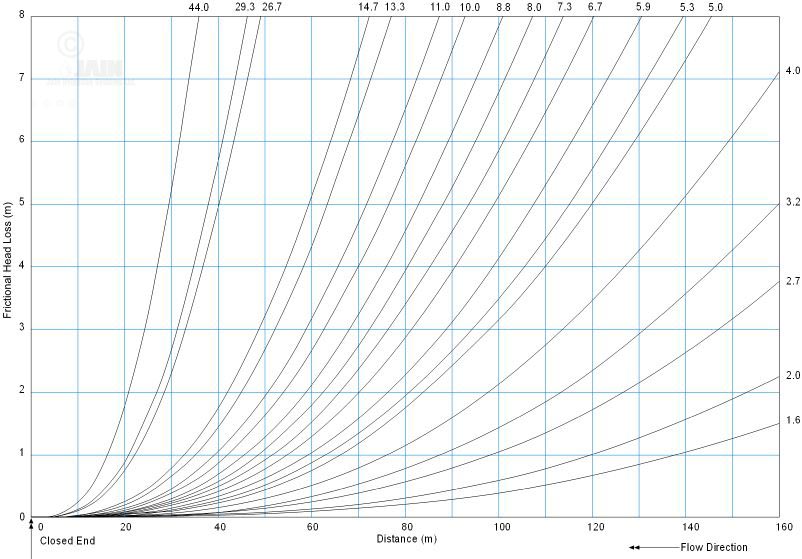

Friction Loss in J-Turbo Aqura® / J-Turbo Line® 16 mm OD.

Note: • Curves are labelled with specific discharge rate (SDR) in lph/mtr.

• The friction loss has been calculated on the basis of the mean ID with dimensions and tolerances for pressure class-2 & for 0% ground slope.

• Based on the Hazen Williams flow equation.
